HRO: HEVOSVAUNUT / HORSE TRAMS

umpivaunut / closed cars
Umpivaunut 1–15 Closed cars 1–15 | Avovaunut 16–19 Open cars 16–19 | |
---|---|---|
Valmistaja / Builder: | Scandia | Scandia |
Valmistettu / Year of construction | 1–11: 1890 12–15: 1891 | 16–19: 1891 |
Pituus / Length | 5,8 m | |
Leveys / Width | 1,9 m | |
Korkeus / Height | 2,75 m | |
Akselijärjestys / Wheel arrangement | 2 | 2 |
Pyörästön pituus / Wheelbase | 1,6 m | |
Pyörän halkaisija / Wheel diameter | 660 mm | |
Jarrut / Brakes | Käsijarru/Handrake: Telkinpyörä | Käsijarru/Handrake: Telkinpyörä |
Tyhjäpaino / Wight empty | 1,6 t (metric ton) | |
Istumapaikkoja / Standing capacity | 14 | 24 |
Seisomapaikkoja / Standing capacity | Etusilta / Front platform: 5 Takasilta / Rear platform: 6 | Etusilta / Front platform: – Takasilta / Rear platform: 6 |
Vetovoima / Motive power | Yksi hevonen / One horse | Yksi hevonen / One horse |
Numero Number | Poistettu Withdrawn | Huom. Note |
---|---|---|
1–10 | 1900–08 | |
11 | Museovaunu / Museum car | |
12–15 | 1900–08 | |
16–19 | 1900–08 |
Olemassaolevat vaunut:
HRO 11. Museovaunu / Museum car
Tuntematon / Unknown. Jokioisten museorautatie / Jokioinen museum railway. Isoja muutoksia / Heavily modified
Huom | Note |
---|---|
1901: Viisi vaunua katetuiksi perävaunuiksi. Uudet numerot 1–5. Vaunuja käytettiin vuoteen 1907. | 1901: Five cars to closed trailers. New numbers 1–5. They work till 1907. |
1907: Näistä yksi vaunu nykyaikaiseksi perävaunuksi. Kts. HRO 5I | 1907: One of these cars to a modern trailer. See HRO 5I |
Neljä vaunua Kausala–Leininselkä -rautatielle. Yksi näistä jäljellä Jokioisten Museorautatiellä | Four cars to 750 mm Kausala–Leininselkä -railway, hauled by steam locomotive. One of these left at the Jokioinen museum railway. |
1909: Julius Tallberg osti poistettuja vaunuja. Tallberg käytti Lauttasaaren hevosraitiotiellä kahta umpi- ja kahta avovaunua. | 1909: Julius Tallberg bought withdrawn trams. Two closed and two open trams were used in Lauttasaari horse tramway. |
Kuvia / Photos:

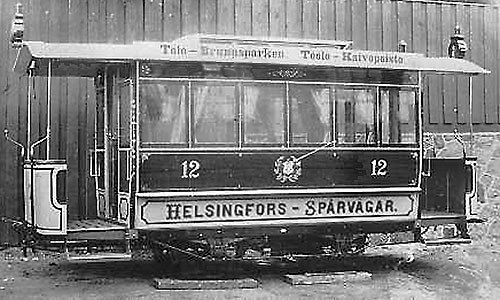

– HRO 12 / Kuva / Photo ©: Kokoelma / Collection Asger Christiansen

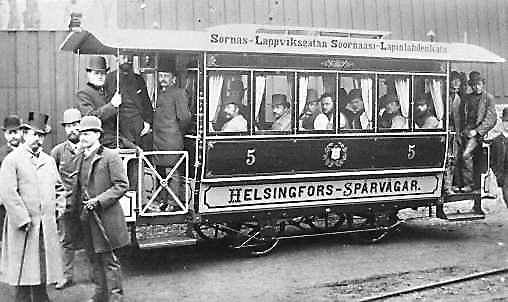

– HRO 5 / Kuva / Photo ©: Kokoelma / Collection Asger Christiansen

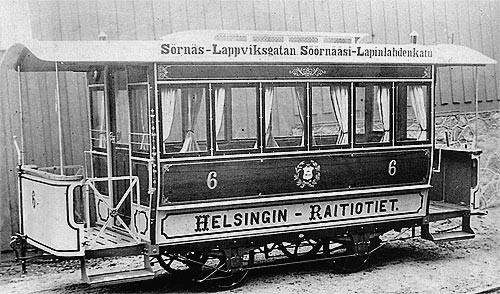

– HRO 6 / Kuva / Photo ©: Kokoelma / Collection Asger Christiansen

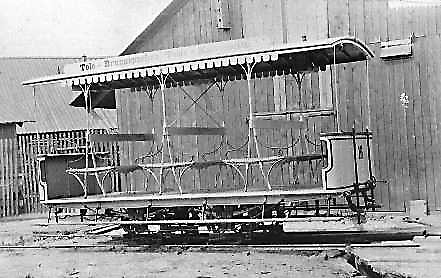

– HRO 16 / Kuva / Photo ©: Kokoelma / Collection Asger Christiansen
– Alokkaan Manne vetää vaunua 11 vuonna 1974 / Alokkaan Manne hauls the HRO 11 in 1974
– Hevosvaunu Minkiön kapearaidemuseossa Kausala–Leininselkä -asussa

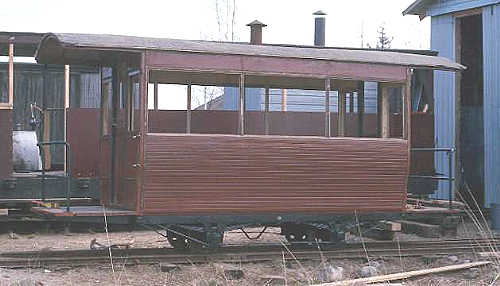

Ex HRO horse tram number ? as Kausala–Leininselkä railway passenger car (750 mm) at Jokioinen Museum railway. Kuva/Photo © Jorma Rauhala. 4.5.1986
